Rammy Thrower Plow ATV

Name: Rammy Thrower Plow ATV - Organic Store
SKU: PT-PKG
Price: 8248.00 AUD
Availability: BackOrder

Categories: Rammy ATV Attachments

MSRP :

$8,248.00

SKU: PT-PKG

Snow Thrower over the entire plow width

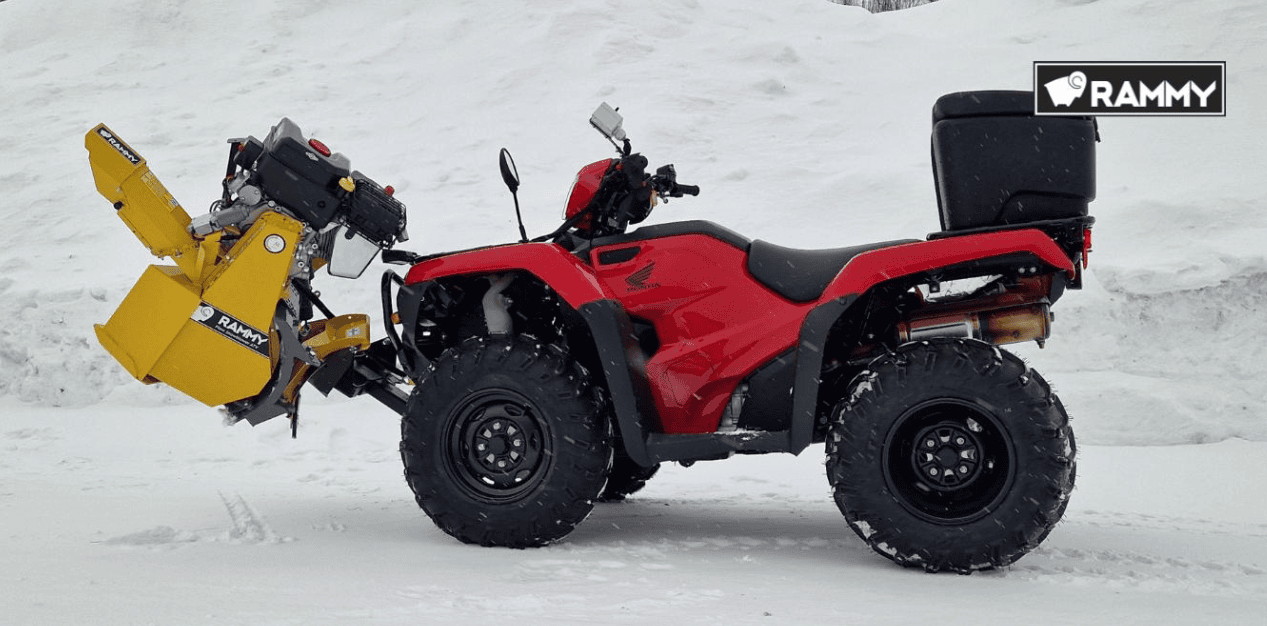

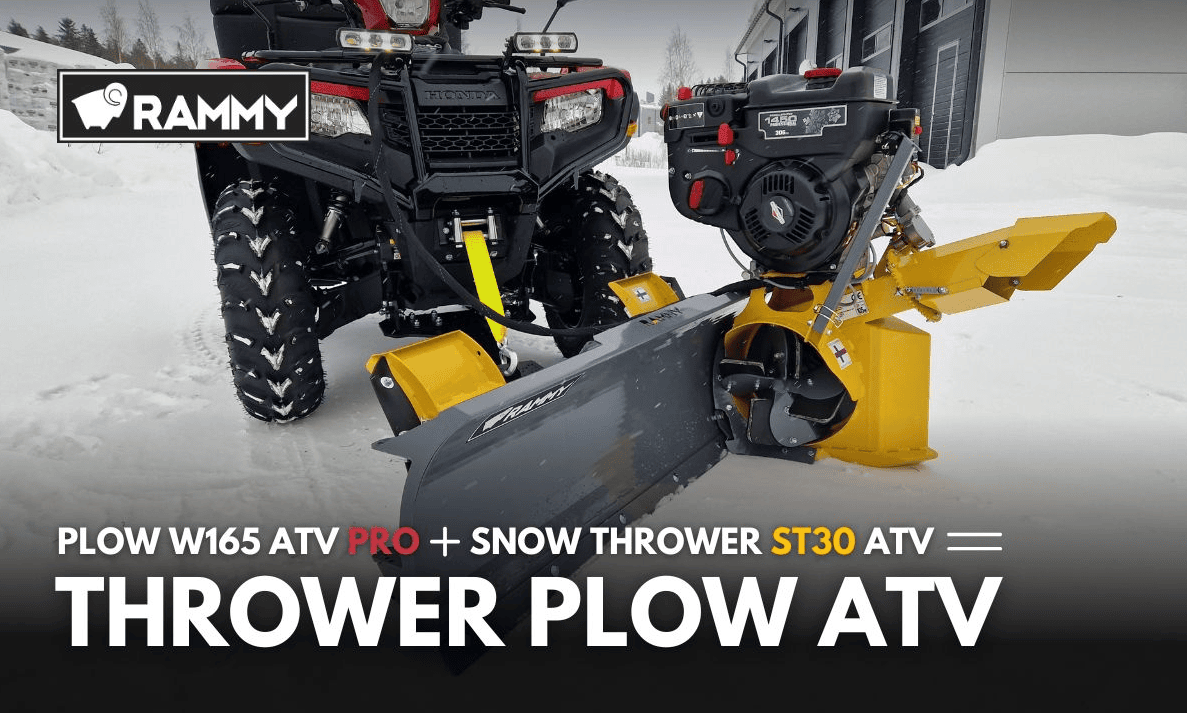

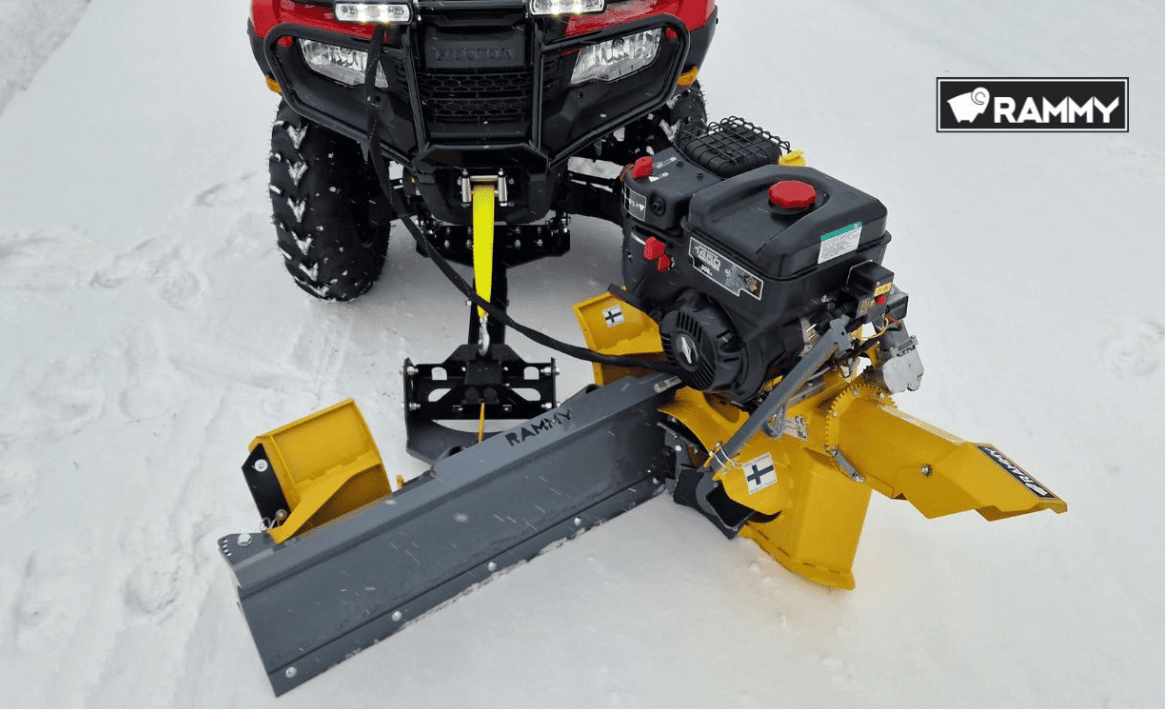

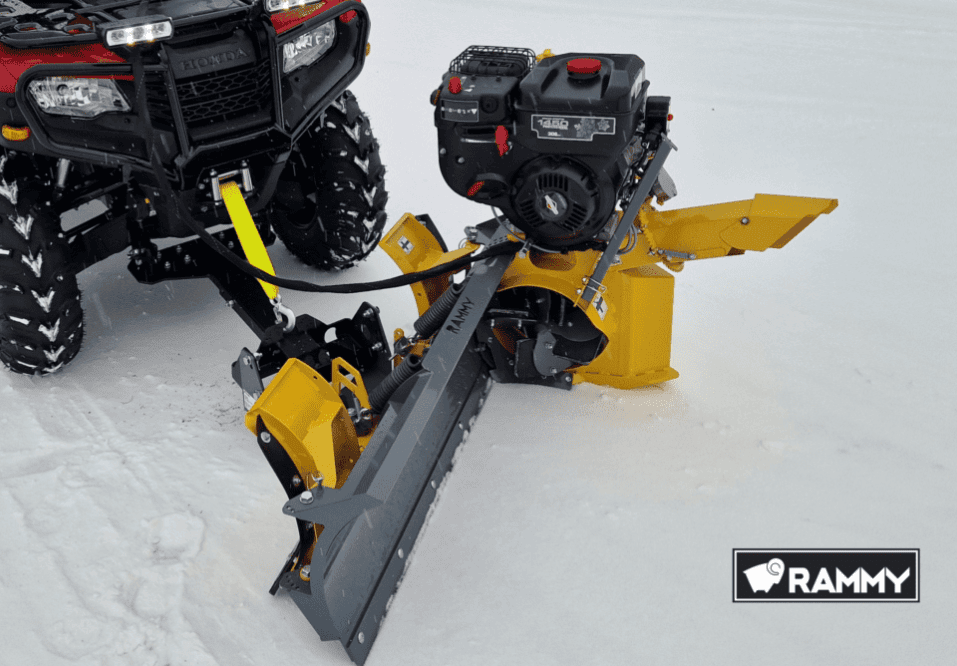

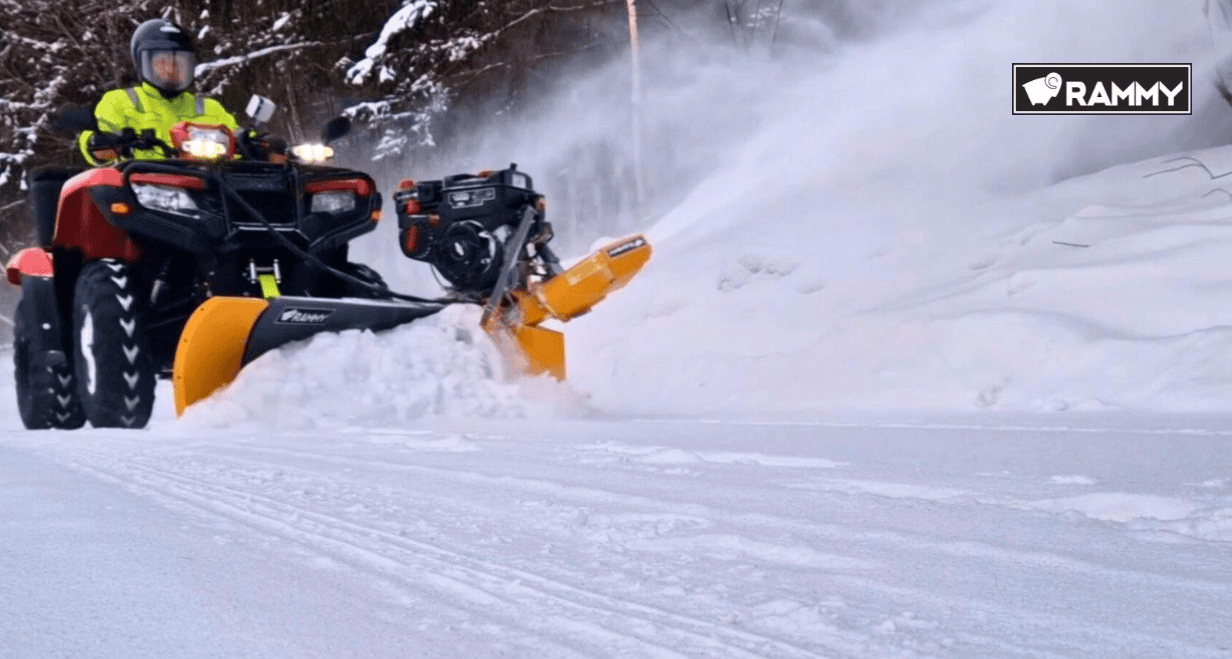

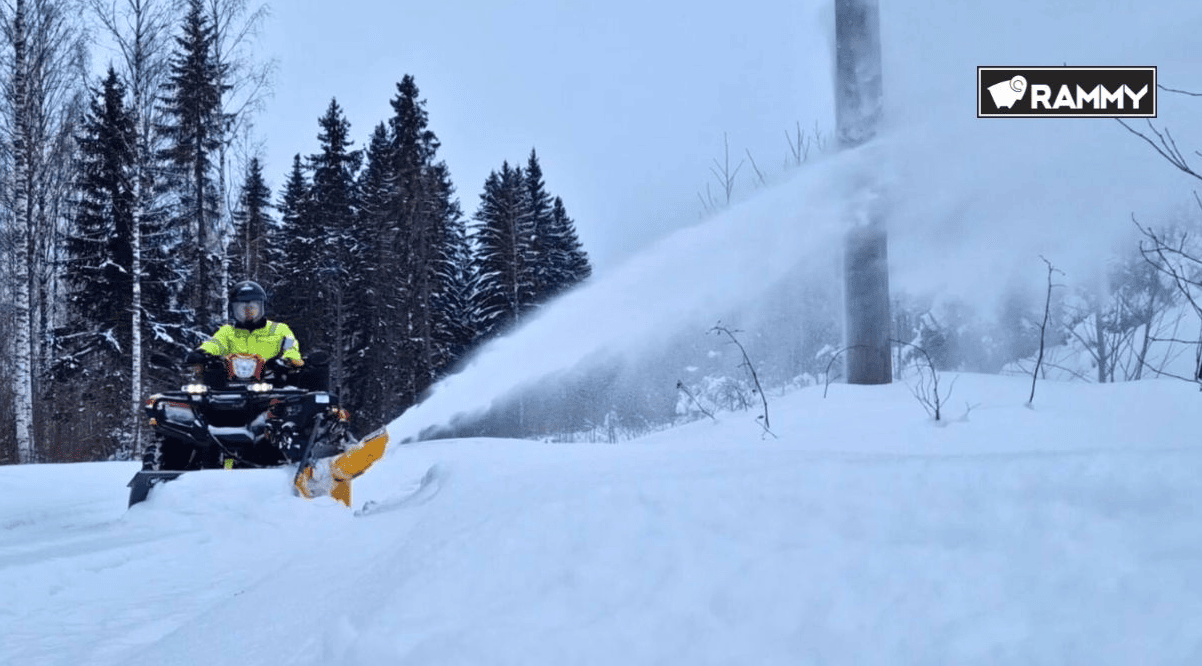

Rammy Thrower Plow ATV is an ATV-mounted plow and snow thrower combination. The plow can be used with the Snow Thrower or simply as a plow.

Snow Thrower for plow

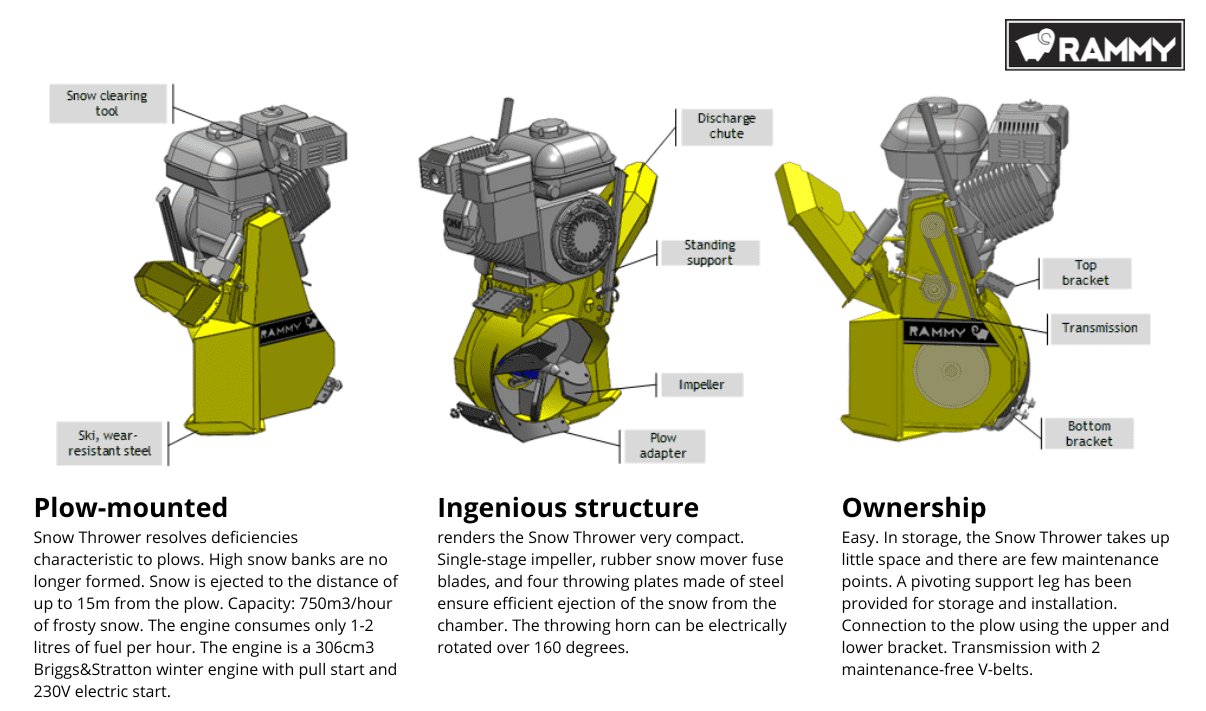

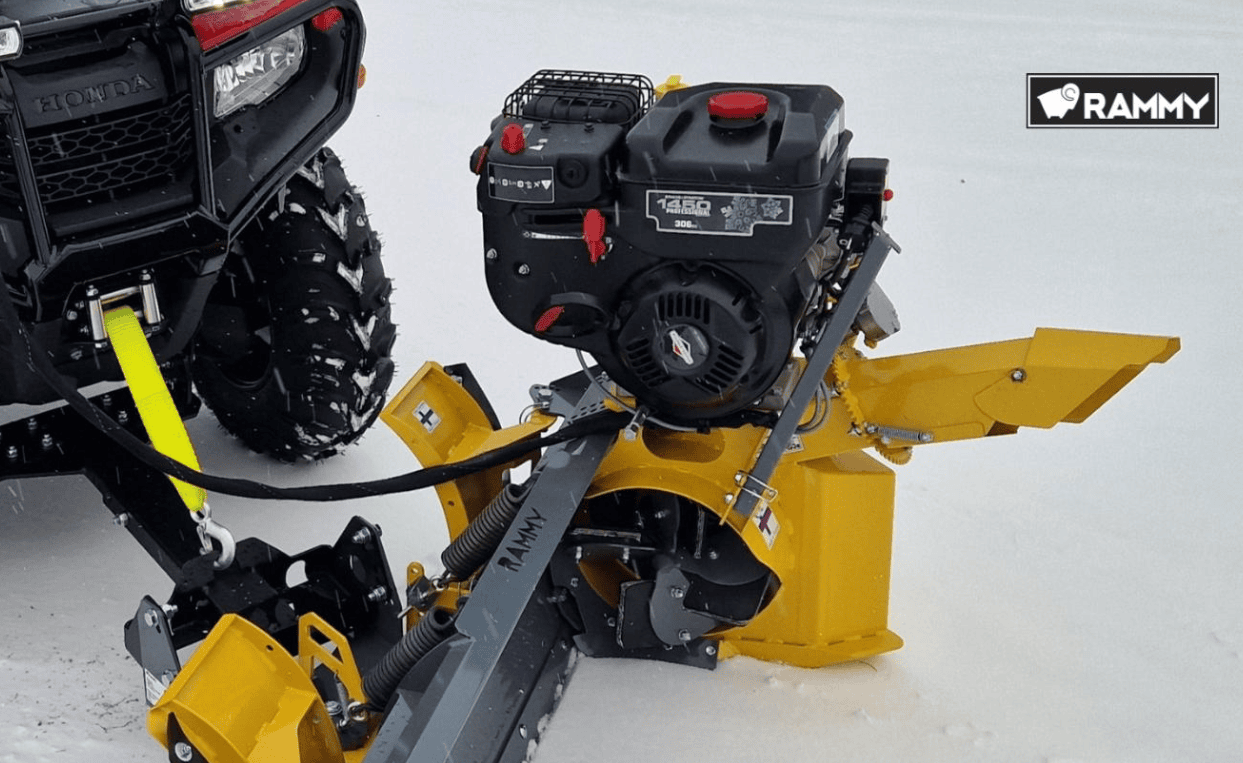

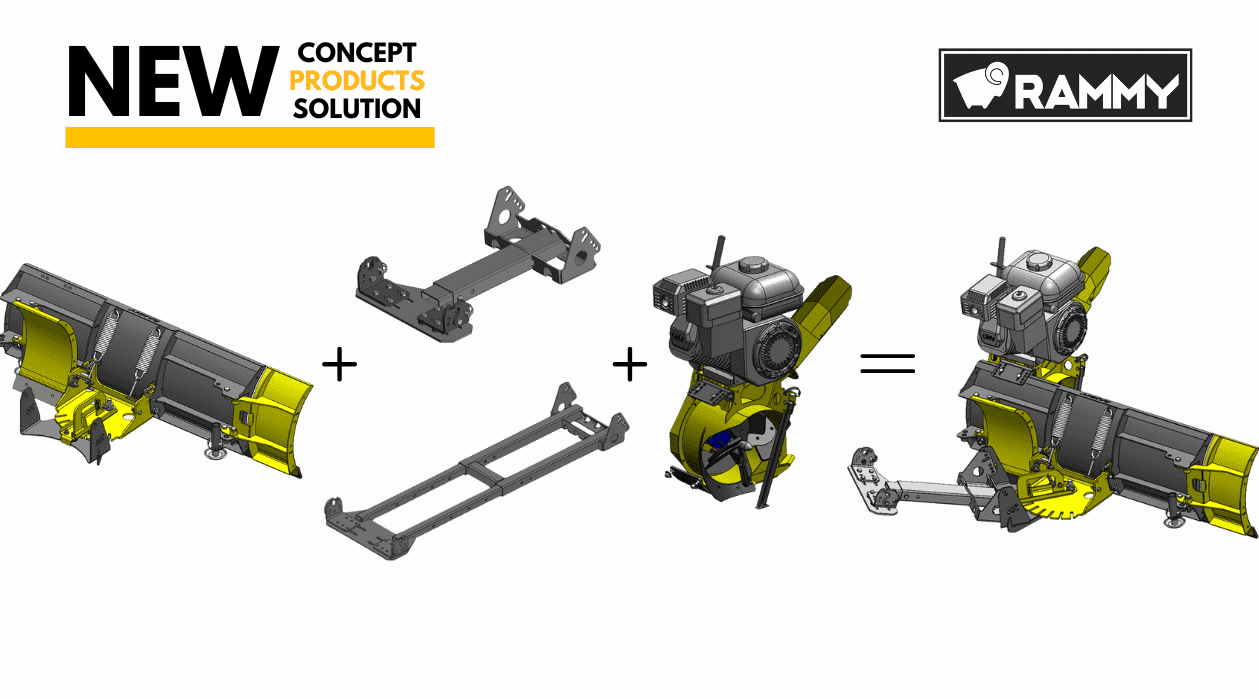

Rammy Snow Thrower is attached to the plow with 4 screws. The impeller is equipped with rubber blades that absorb shocks and function as snow mover/fuse.

Light and compact structure

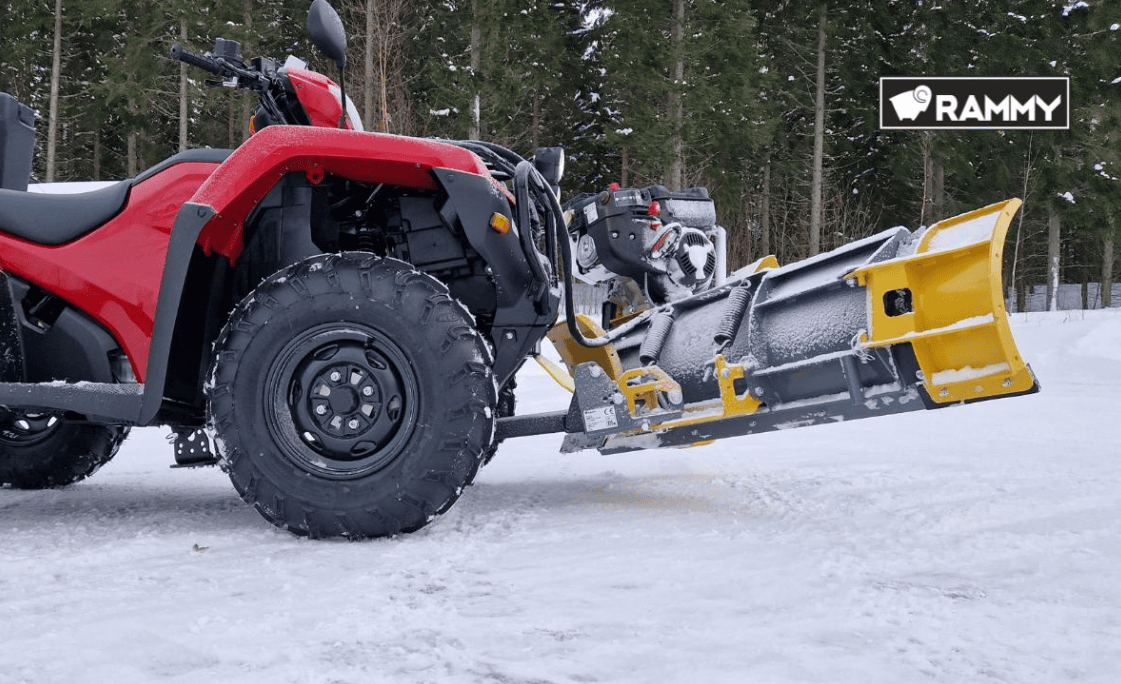

The plow and Snow Thrower can be lifted using the ATV’s winch. Especially with the front-mounted accessory frame, the plow rises to a high position, leaving ample space for working and ground clearance for travel.

A functional whole

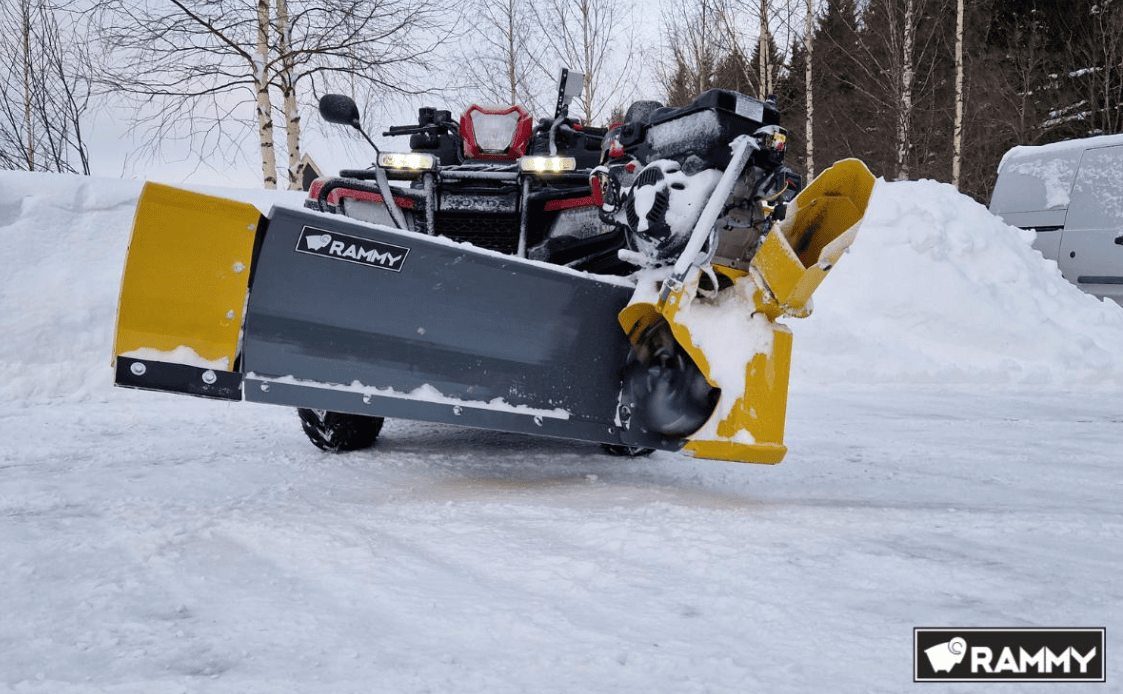

Where the plow’s qualities end, the Snow Thrower’s qualities begin. Snow banks are no longer formed. The ST30 works with frosty snow. And when snow gets wet, use just the Plow.

Designed down to the last detail

All details have been well thought out, including functionality, safety, maintenance, and storage.

Standing support for storage

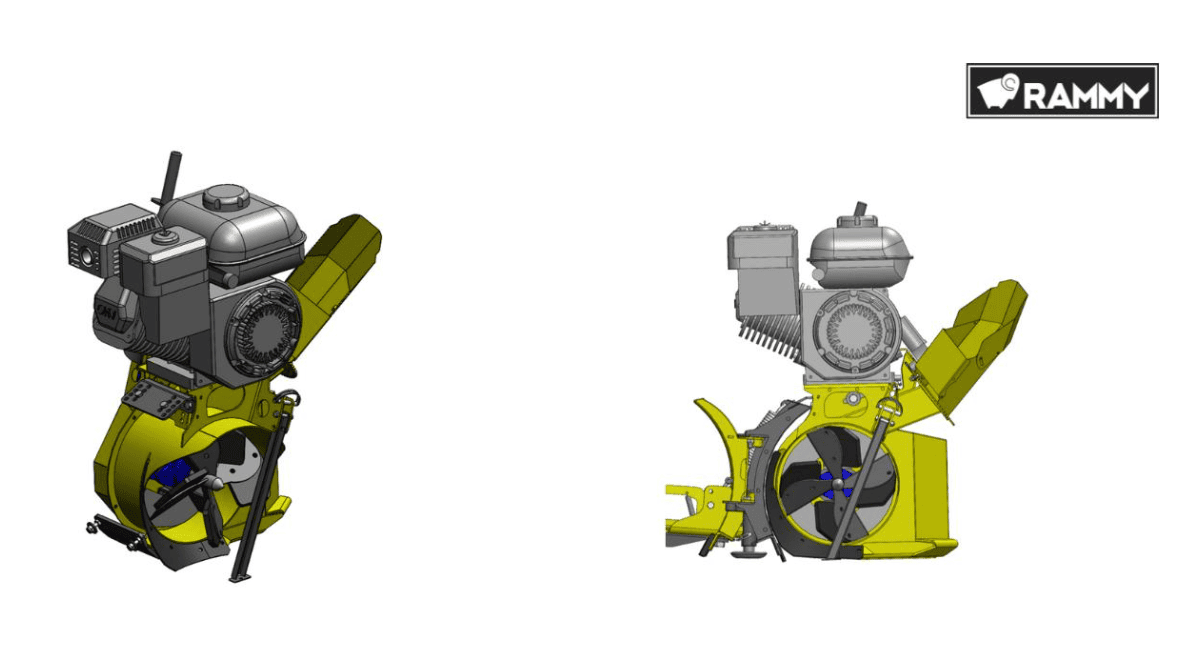

The Snow Thrower takes up little space in storage. A pivoting support leg has been provided for storage and installation. The required storage space is W39xL76xH87cm.

Working width	1,18 m (with Plow W165 ATV PRO)
Weight	Plow W165 ATV PRO + ST 30 ATV = 120 kg.
Engine	Briggs&Stratton 1450 SnowSeries. Cubic volume 306cm3, torque 20Nm. Tank volume 3.0L. Manual/electric (230V) starting.
Impeller	1-stage, 4-blade. Rubber blades absorb shocks and transfer the snow inside. Steel throwing plates 4 pcs. Impeller Ø 300mm.
Transmission	2 V-belts, belt tensioner pulley.
Snow throwing distance	Up to 15 m.
Remote control	Electronic remote control. Electricity is generated by the snow thrower’s engine. – ON/OFF switch – Throwing chute rotation RIGHT/LEFT 160 degrees
Consumption	1-2 L/h
Attachment to ATV	Front or center mounted adjustable accessory frame (optional). If you already own a Rammy Snowblower, mower or cutter, its adjustable accessory frame can be used. Mount brackets with holes on snow blade on ATV, hole Ø10mm, or 16-19-20mm locking hook. Adjustable width of mount bracket 240-500mm (outer dimension), adjustable length 500-830mm (front-mounted)/750-1250mm (centre-mounted).
Rising/lowering	With the ATV’s winch. A counterweight is recommended for the ATV to balance the front load.
Skis/sliding surface	Special wear-resistant steel.
Standard equipment	-Snow removal tool -Pull cord start -Electric start 230V -Electronic remote control -Plow mounting hardware -Remote control fasteners to ATV’s handlebar -Adapter for plow arch -Stand for storage and maintenance
Capacity	750 m3/h frosty snow.
