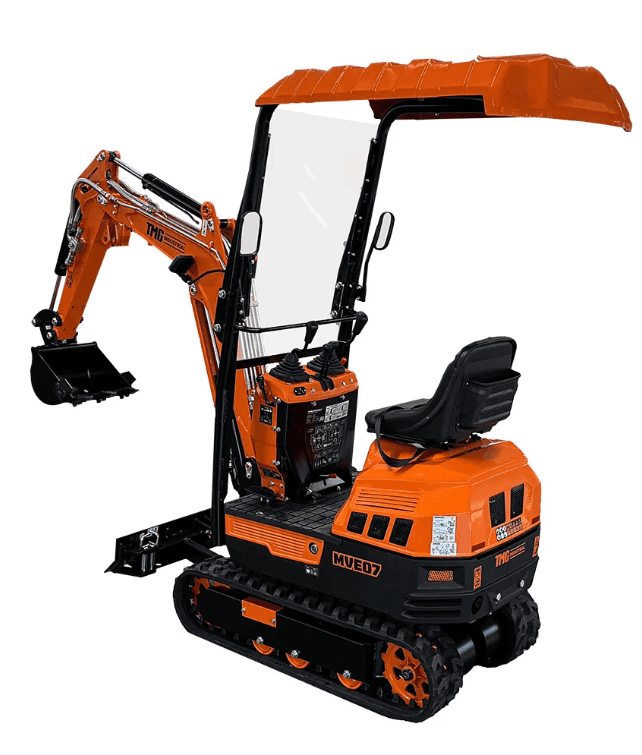

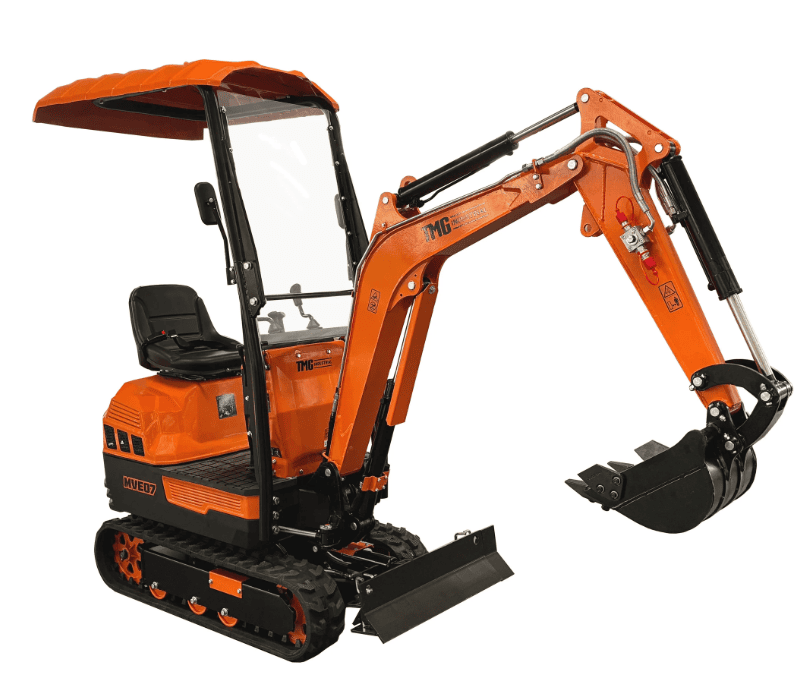

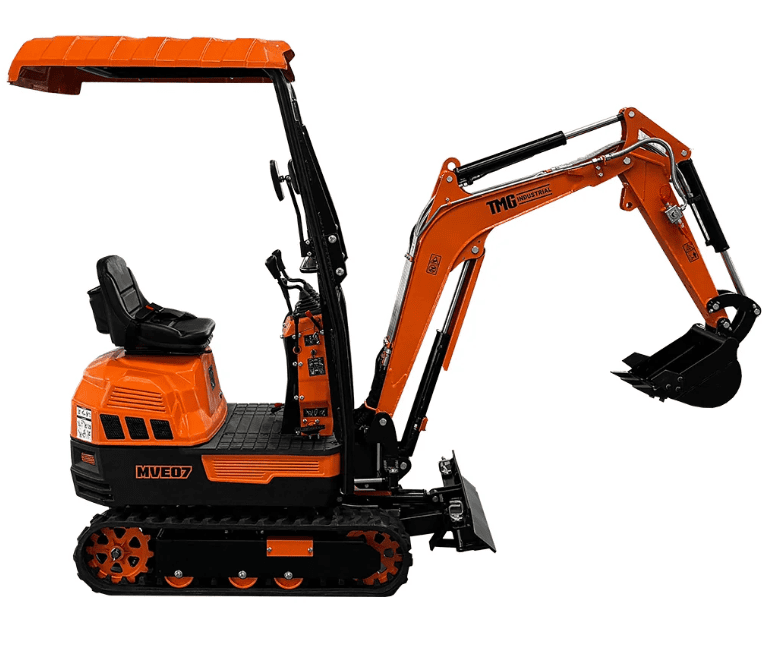

2200lb Compact Mini Excavator

• Operating Weight: 2200 lb (1000 kg)
• Bucket Width: 13-3/4″ (350 mm)
• Bucket Capacity: 0.8 cu ft (0.023 m³)
• Working Device Form: Backhoe
• Bucket Digging Force: 2765 lb (12.3 kN)
• Max Travel Speed: 1.8 mph
• Max Gradeability: 25°

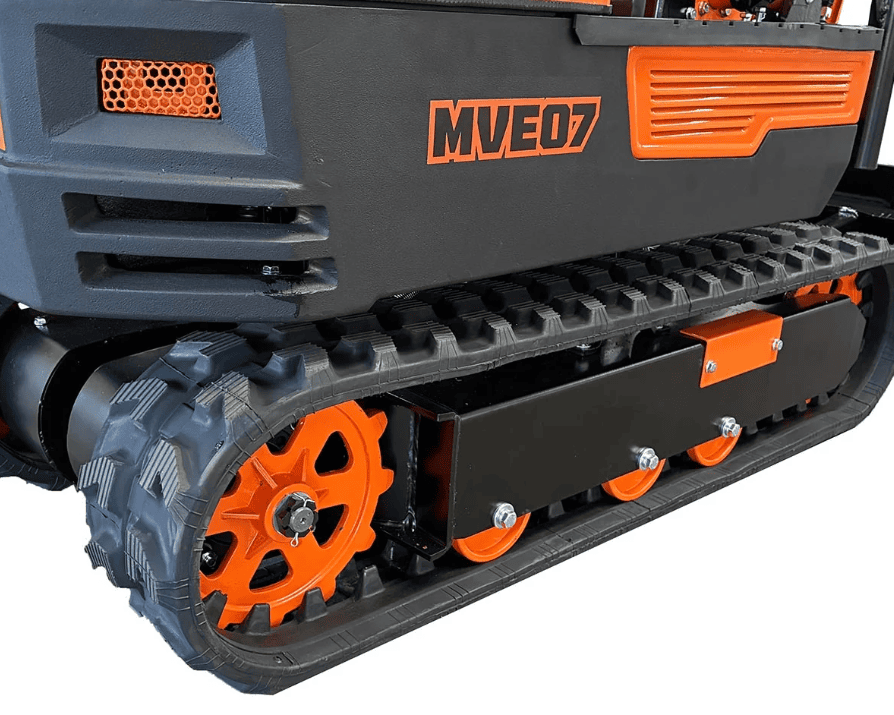

• Track Type: Rubber crawler
• Track Ground Pressure: 4.2 PSI (29 kPa)
• Hydraulic Tank Capacity: 3.6 gal (13.5 L)
• Parking Brake: Hydraulic lock
• Max Traction Force: 7.6 kN
• Swing Speed: 8.8 RPM

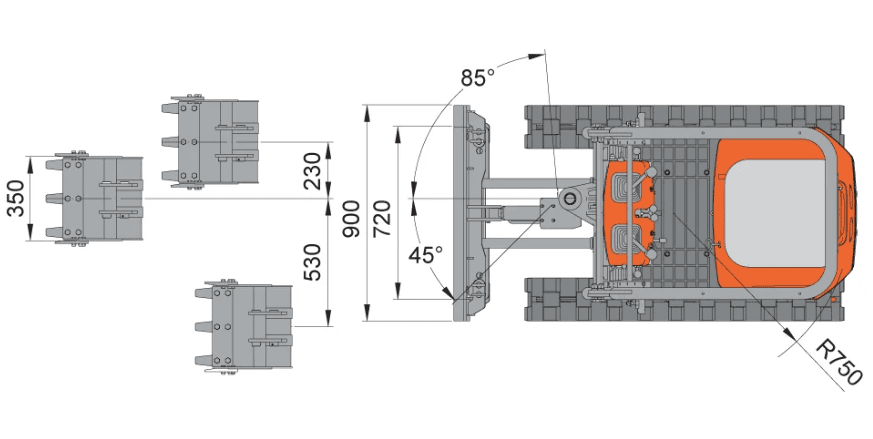

• Boom Swing: Left 45° / Right 85°
• Pump Capacity: 3.4 GPM (13 L/min)
• Tip-Over Protection Structure (TOPS)

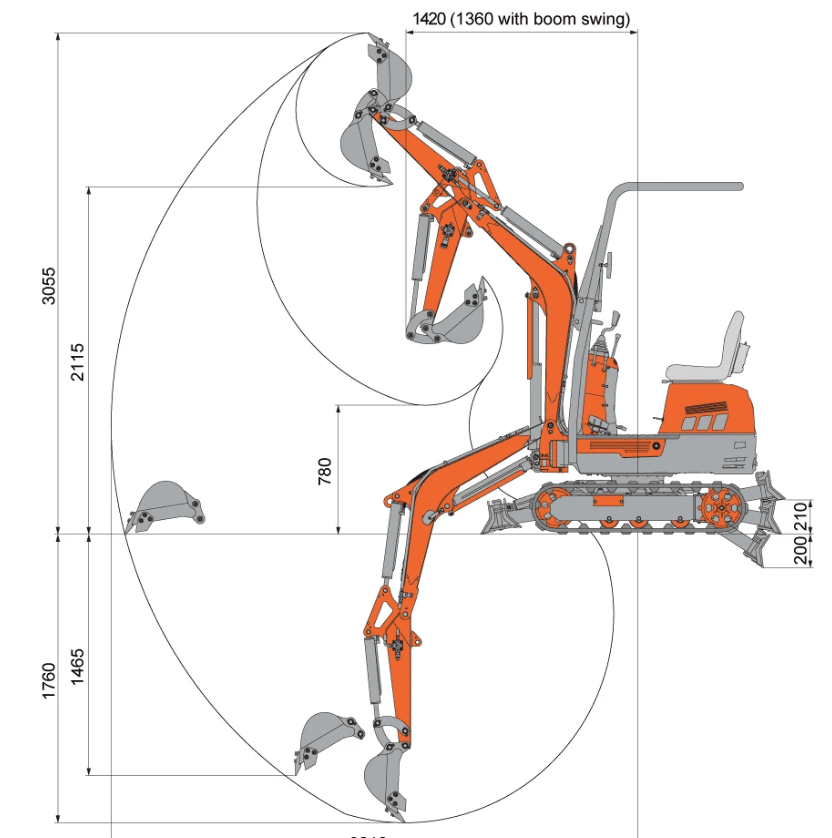

Operating Range

• Max Digging Depth: 69-1/4″ (1760 mm)
• Overall Operating Height (Fully Raised): 120-1/4″ (3055 mm)
• Max Digging Radius: 126-3/8″ (3210 mm)
• Max Unloading Height: 83-1/4″ (2115 mm)
• Min Turning Radius: 56″ (1420 mm) or 53-1/2″ (1360 mm with boom swing)

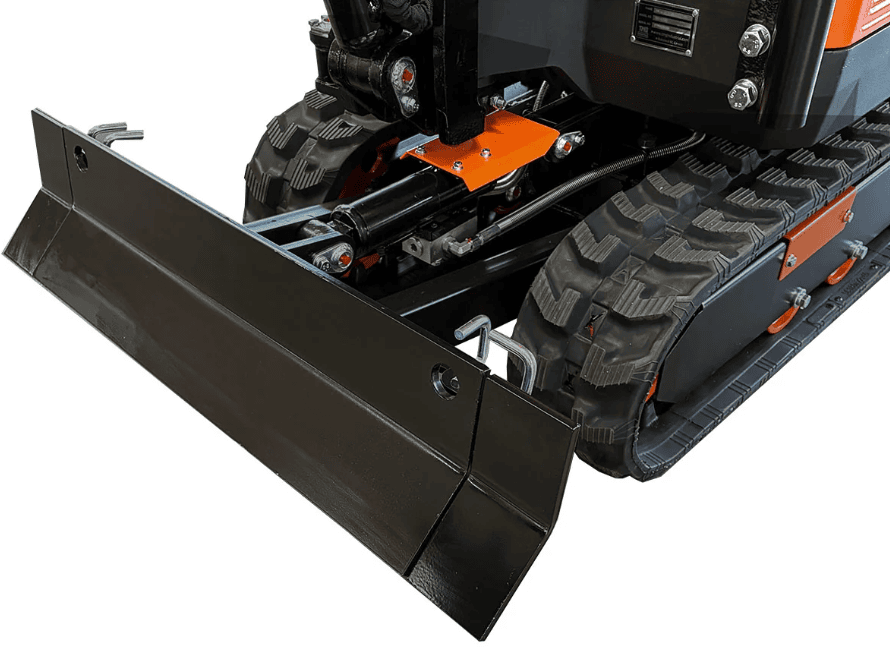

• Max Lifting Height Dozer Blade: 8-1/4″ (210 mm)
• Max Depth Dozer Blade: 7-7/8″ (200 mm)

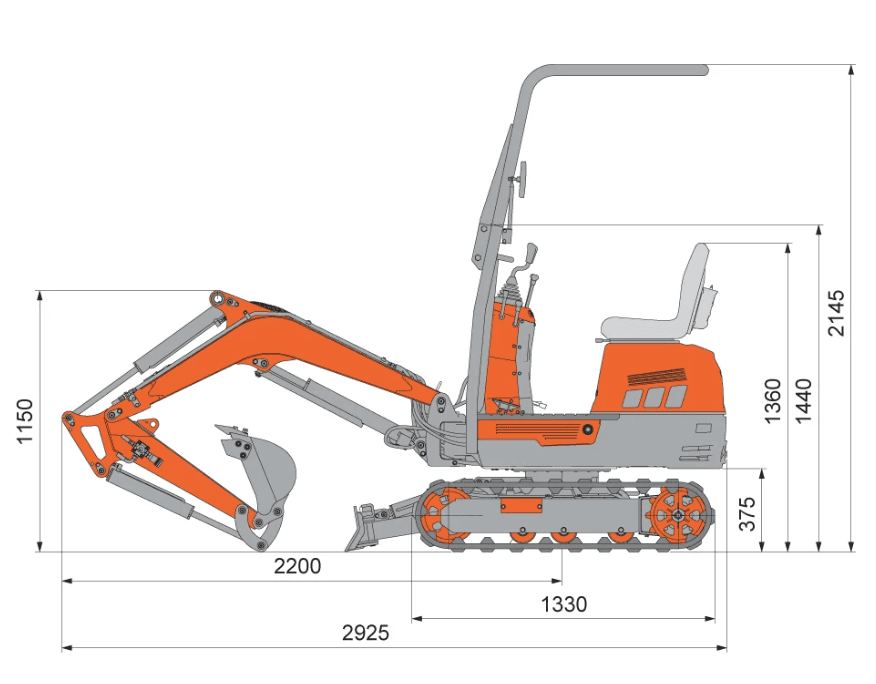

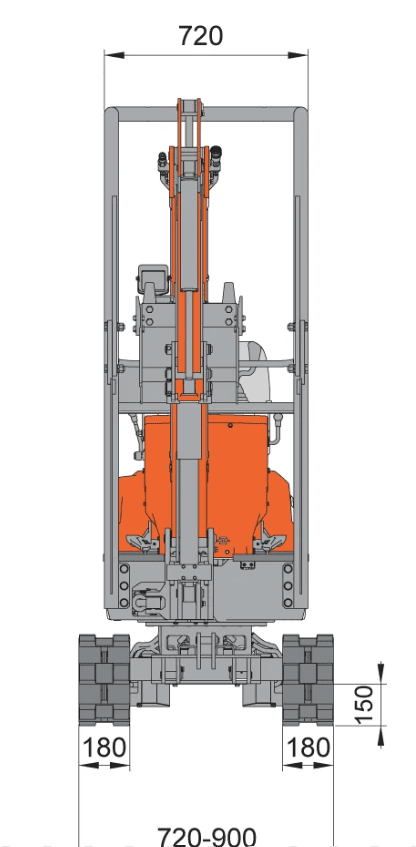

Main Dimensions

• Track Length: 47-1/2″ (1330 mm)
• Track Width: 7″ (180 mm)
• Track Height: 6″ (150 mm)
• Upper Chassis Ground Clearance: 14-1/2″ (375 mm)
• Chassis Width: 28-3/8″ to 35-1/2″ (720 – 900 mm)
• Transportation Length: 115-1/4″ (2925 mm)
• Height of Seat to Ground: 53-1/2″ (1360 mm)
• Overall Height: 88″ (2235 mm), with canopy

Engine

• Single-cylinder, air-cooled, 4-stroke, OHV
• Displacement: 420 cc
• Max Output Power: 14 HP @ 3600 RPM
• Start Type: Electric start
• Fuel Tank Capacity: 8 L
• Oil Capacity: 1.2 US qt (1.1 L)
• Engine Oil Type: 10W-30
